WF1032T | WF1033T | WF1036T | WF1038T

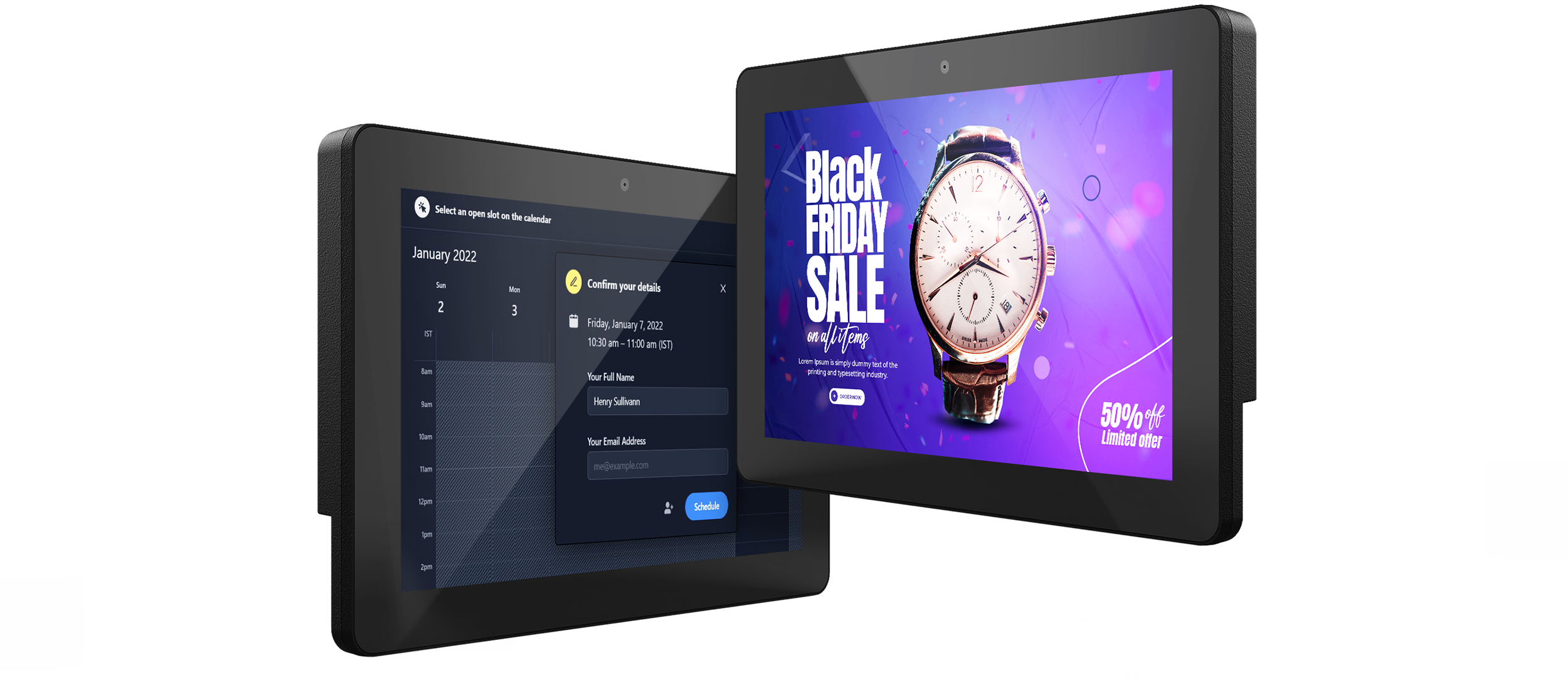

10.1-inch Touchscreen Signage
Features 1280*800 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An intuitive FHD touch display lets you take full control with the tap of a finger.

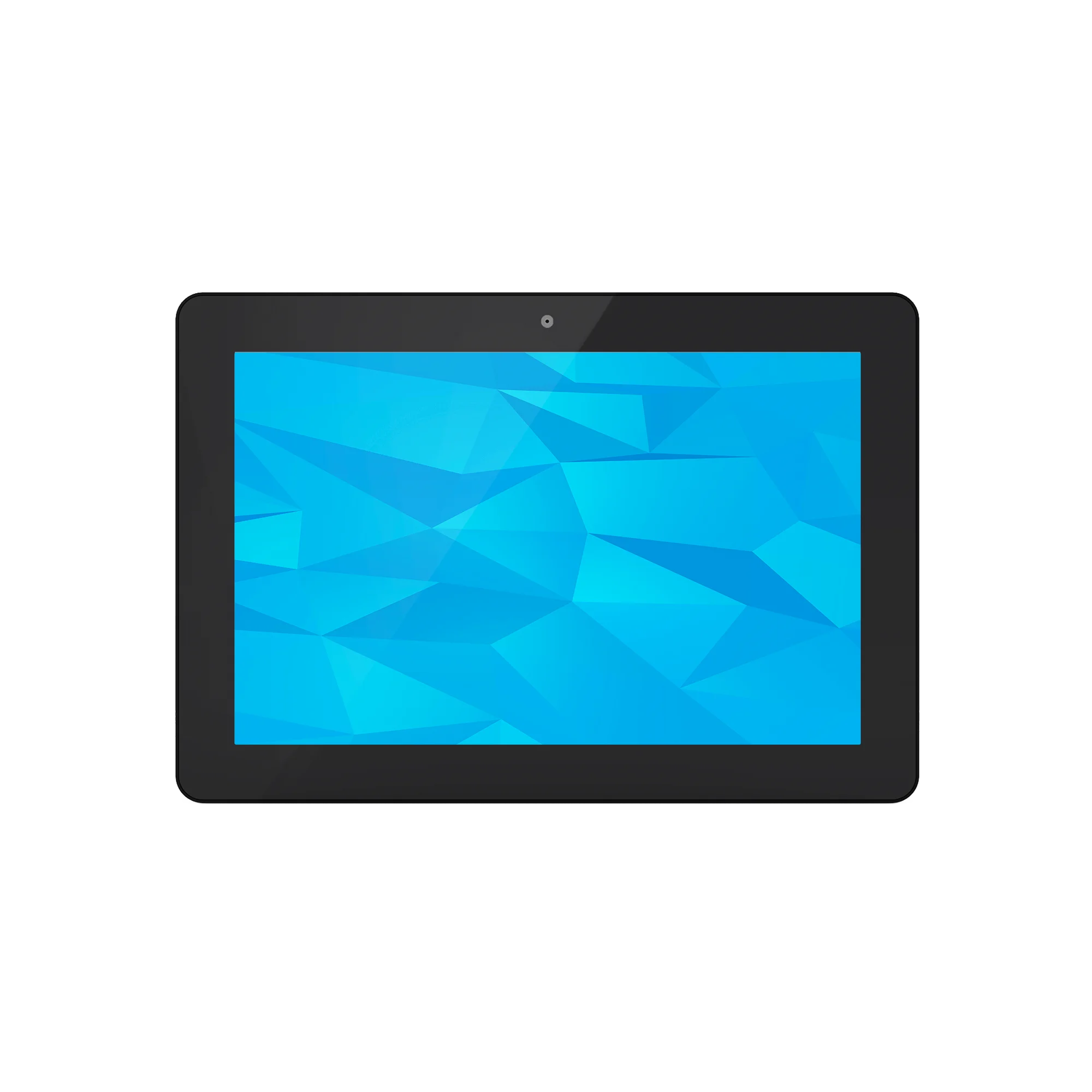

DISPLAY

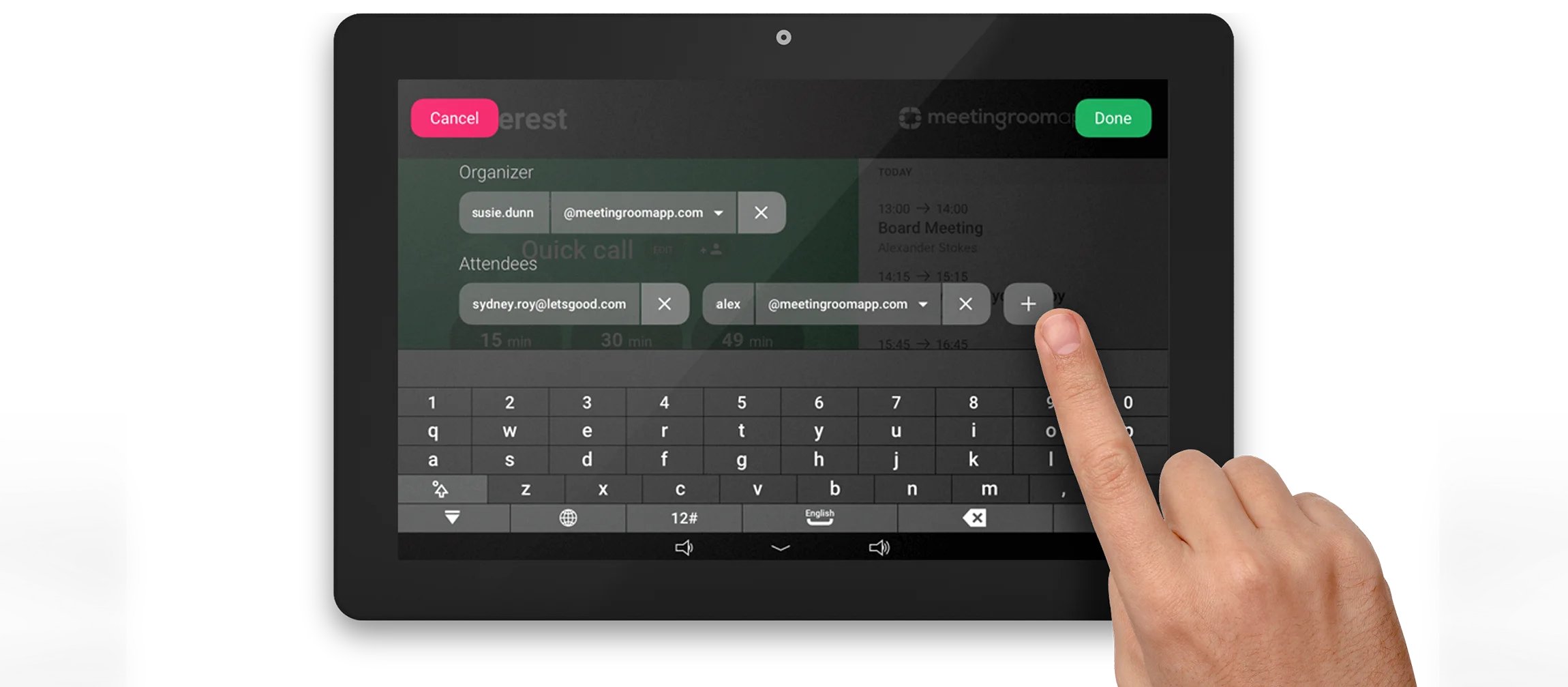

10.1-inch HD Multi-Touch Display
An intuitive FHD touch display lets you take full control with the tap of a finger.
OPERATING SYSTEM
Personalize Your Devices With Ease.
You can easily personalize devices to suit your preferences and style. Also, Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.

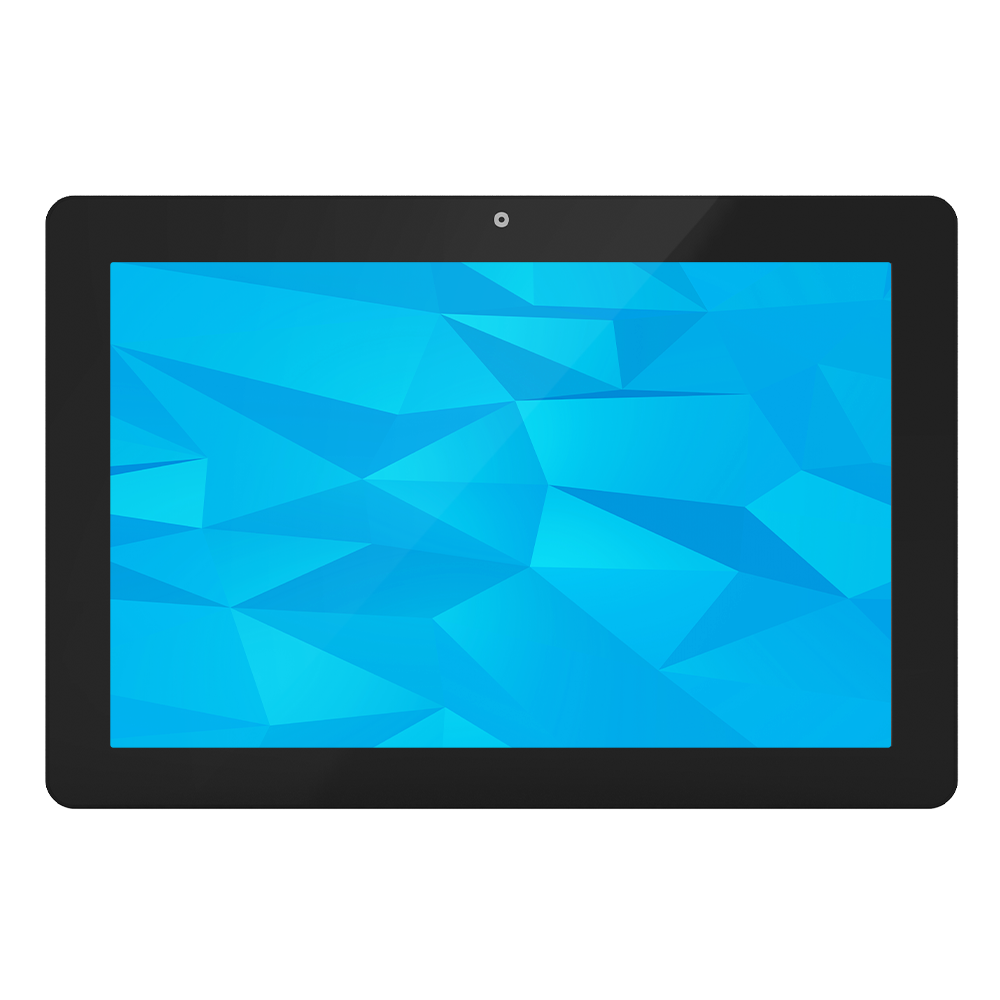

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One. Neat And Logical.
With built-in speakers and mic, ELC touchscreen signages free up space and making them a good choice for conference rooms, TV rooms, gathering spaces, and other rooms. Dual speakers create a more immersive stereo sound with a sense of directionality and space.

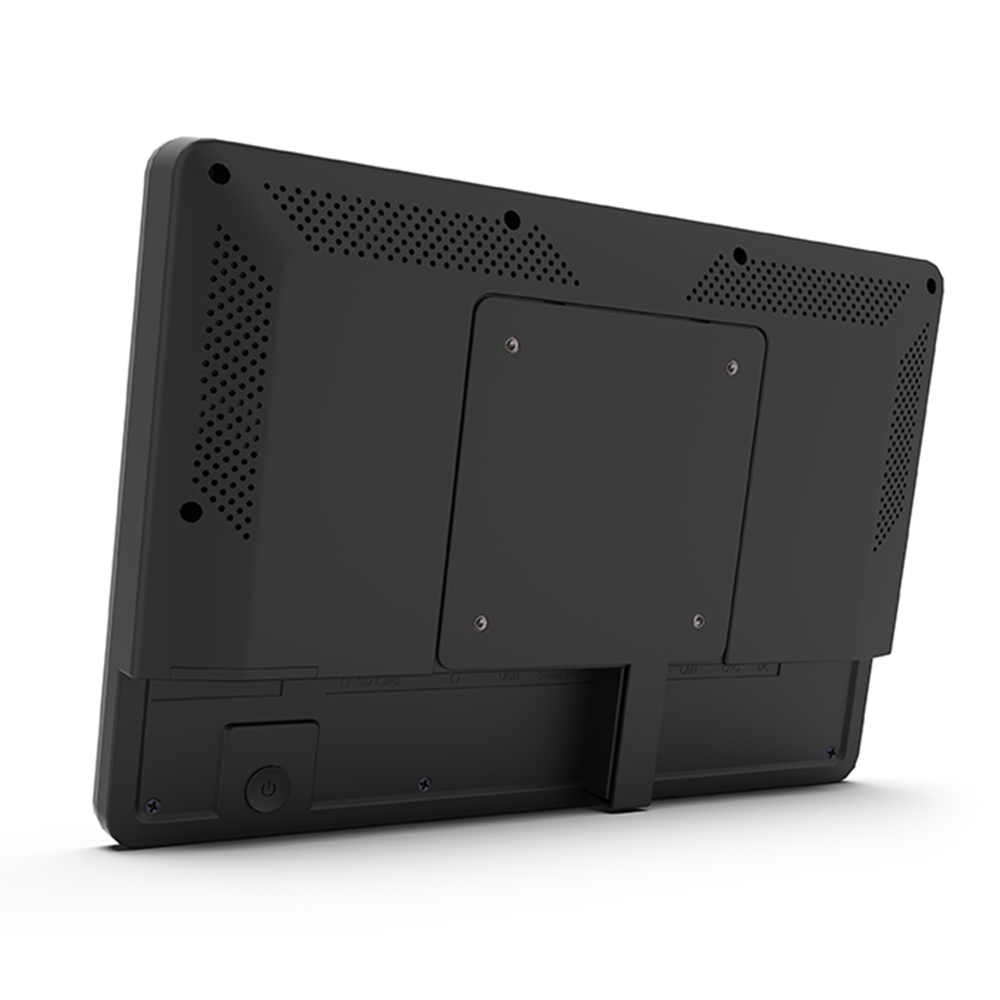

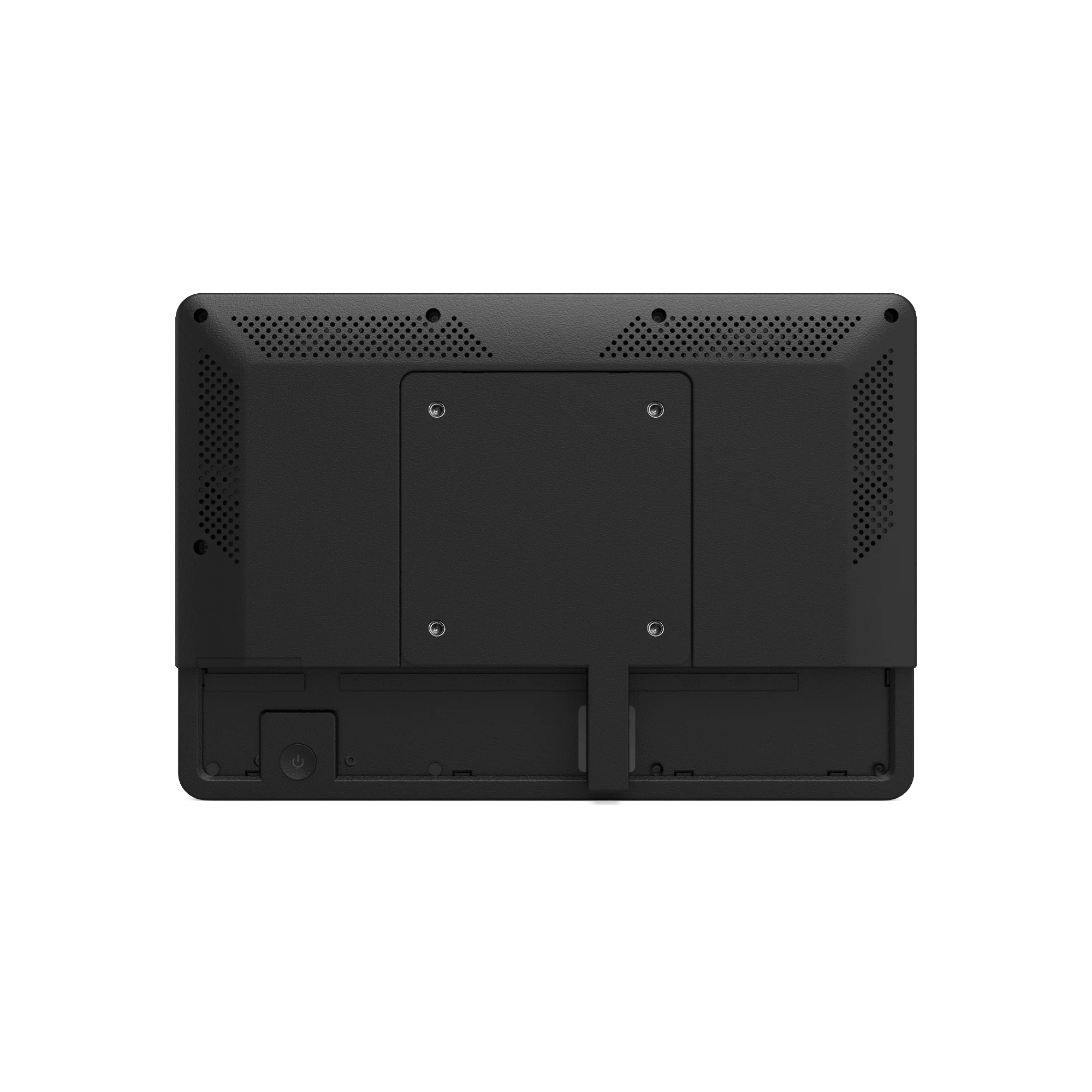

VESA 75 x 75mm
Flexibly Adjust Position for Best Viewing Comfort And Space Efficiency.
With a VESA mount monitor, you can customize your workspace setup to suit your preferences and needs. By mounting your monitor on a wall or an adjustable arm, you can free up desk space, reduce clutter, and achieve better ergonomics, leading to increased comfort and productivity.

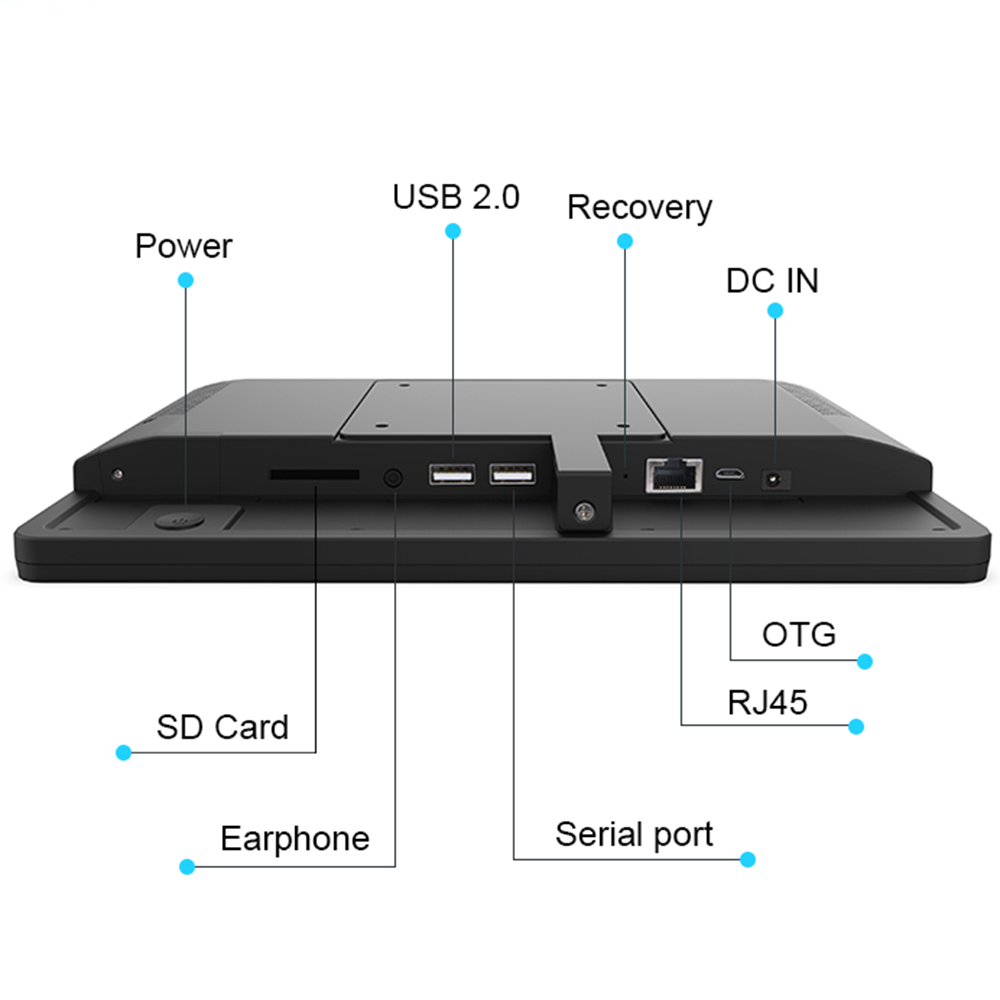

CONNECTIONS AND EXPANSION
Easy Connectivity.
This 10.1-inch touchscreen signage equipped with rich interfaces to meet your various needs, HDMI, USB-A port, 3.5mm audio out and RJ45 ethernet port.

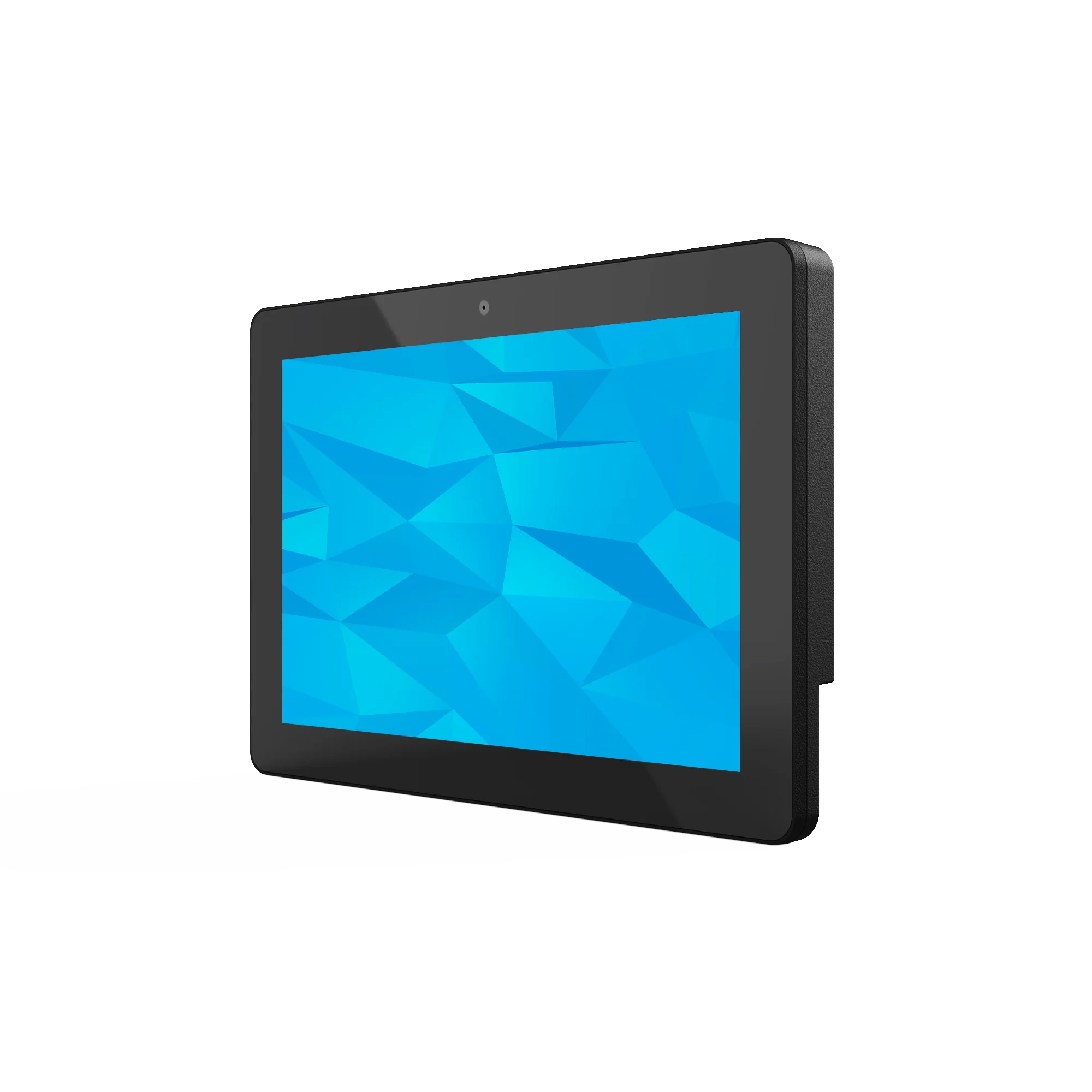

10.1" Touchscreen Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399, Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WF1032T | WF1033T | WF1036T | WF1038T
Specifications
Display
10.1-inch (LCD)
1280 x 800 pixels
16:10
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WF1032T: RK3288 Quad-core cortex A17
- WF1033T: RK3399 Dual-core cortex A72 + Quad-core cortex A53
- WF1036T: RK3566 Quad-core cortex A55
- WF1038T: RK3568 Quad-core cortex A55
- WF1032T: 2GB
- WF1033T: 2GB (Optional 4GB)
- WF1036T: 2GB (Optional 4GB)
- WF1038T: 2GB (Optional 4GB)
- WF1032T: 16GB
- WF1033T: 16GB (Optional 32GB/64GB)
- WF1036T: 16GB (Optional 32GB/64GB)
- WF1038T: 16GB (Optional 32GB/64GB)
- WF1032T: Android 5.1/8.1/10.0
- WF1033T: Android 7.1/10.0
- WF1036T: Android 11
- WF1038T: Android 11
Size and Weight
259.36 × 178.36 × 28.70 mm (L × W × D)
Wireless
- WF1032T: IEEE 802.11b/g/n
- WF1033T: IEEE 802.11a/b/g/n/ac
- WF1036T: IEEE 802.11b/g/n
- WF1038T: IEEE 802.11b/g/n
Bluetooth 4.2
I/O Ports
- WF1032T: USB 2.0 Host
- WF1033T: USB 3.0 Host
- WF1036T: USB 3.0 Host
- WF1038T: USB 3.0 Host
- WF1032T: USB for serial (RS232 Level), Optional USB Host
- WF1033T: USB for serial (RS232 Level), Optional USB Host
- WF1036T: USB for serial (TTL Level), Optional USB Host
- WF1038T: USB for serial (TTLLevel)
Micro USB OTG
DC power input
Media Format
- WF1032T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WF1033T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1036T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1038T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
- WF1032T: JPEG
- WF1033T: JPEG
- WF1036T: JPEG
- WF1038T: JPEG/PNG
Others
75mm × 75mm
2W*2
Single microphone
- WF1032T: Optional 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
- WF1033T: Optional 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
- WF1036T: Optional 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Routine angle 5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/1.5A
×1
