WF1562T | WF1563T | WF1566T | WF1568T
15.6-inch Touchscreen Signage
Features 1920*1080 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An intuitive FHD touch display lets you take full control with the tap of a finger.
DISPLAY

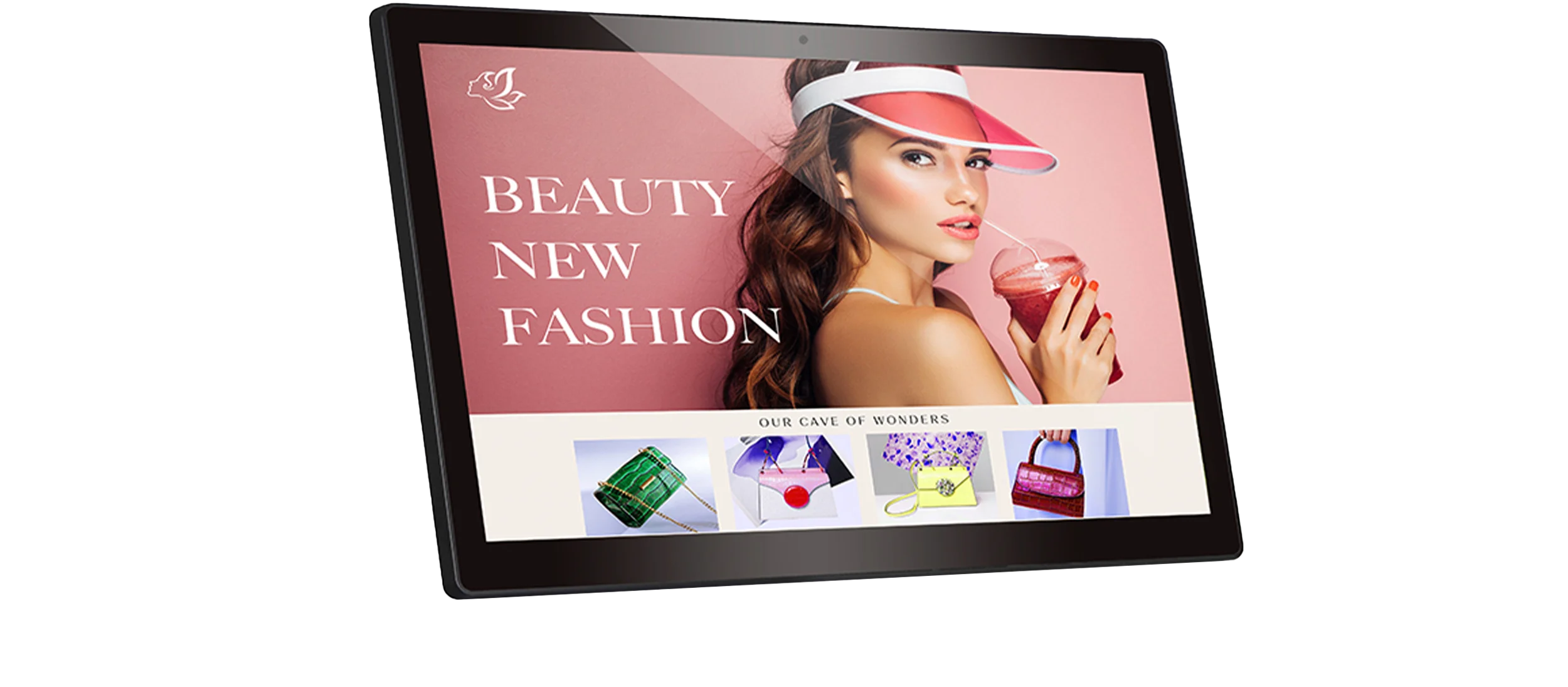

15.6-inch HD Multi-Touch Display
The portable monitor features a 15.6-inch touchscreen with a full HD resolution of 1920x1080. 10-point multi-touch screen enables multiple people to use a device at once, or one person can use multiple fingers for complex inputs, which streamlines workflow and improves efficiency.
OPERATING SYSTEM
All You Can Stream and Cast.
Easily download your favorite apps on the display and enjoy with built-in dual speakers on ELC touchscreen signage. The touch screen also offers multiple ways to connect to your favorite content via HDMI and USB ports that let you effortless work or play.
BUILT-IN CAMERA, SPEAKERS AND MIC
All In One.
Requiring no additional setup or external hardware, making it easy to quickly initiate video calls or record videos without needing to connect extra peripherals. This also contributes to portability and space-saving benefits.

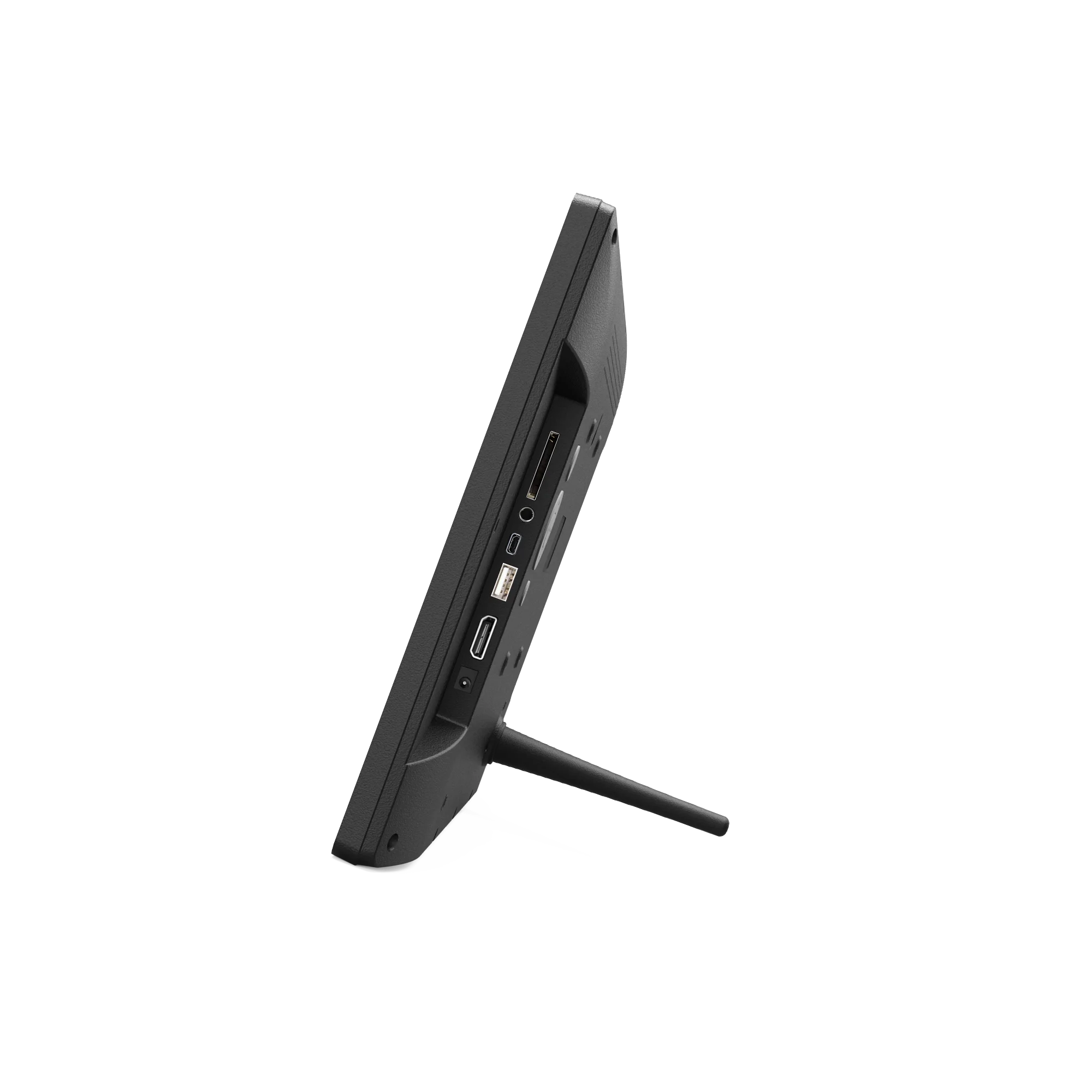

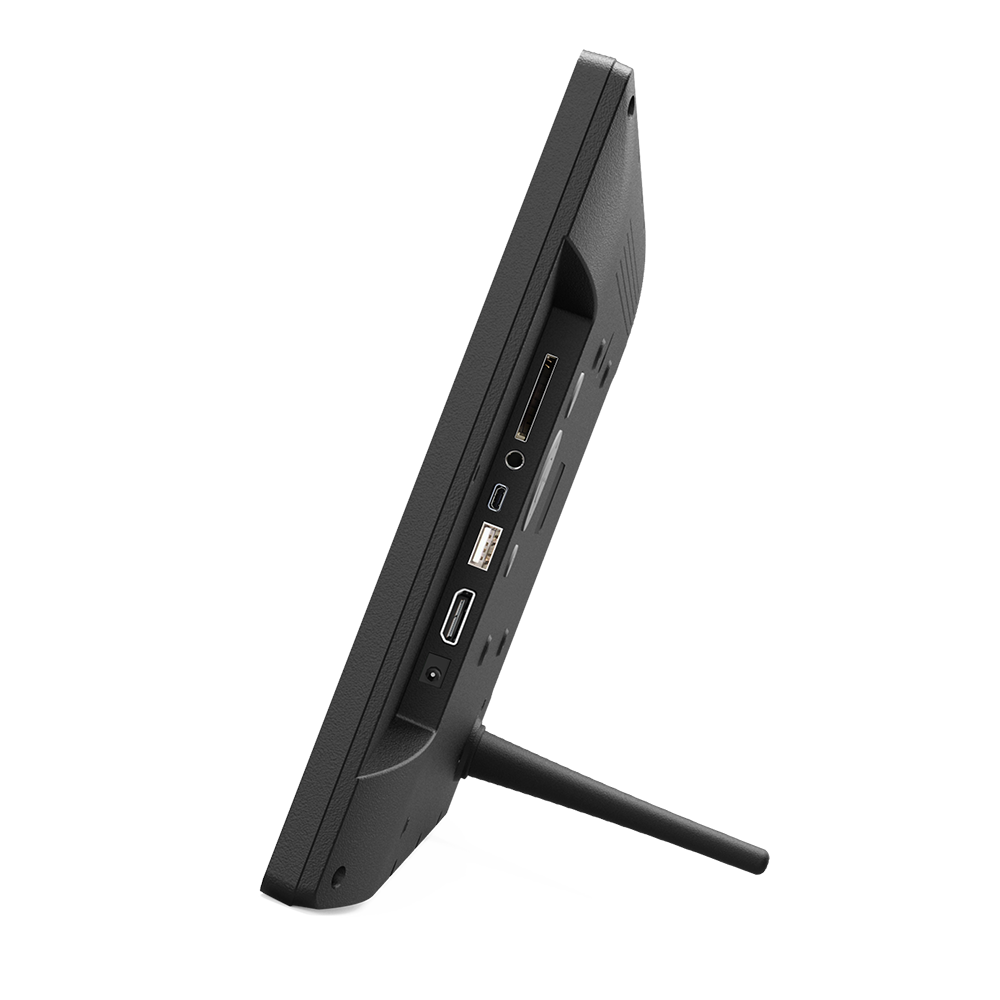

BUILT-IN KICSTAND
Ergonomic Stand For Custom Comfort.
The portable touchscreen signage has a built-in kickstand that allows you to easily prop it up at different angles, making it comfortable to use while sitting or standing. This not only makes it easier to view, but also helps to reduce the strain on your neck and eyes.

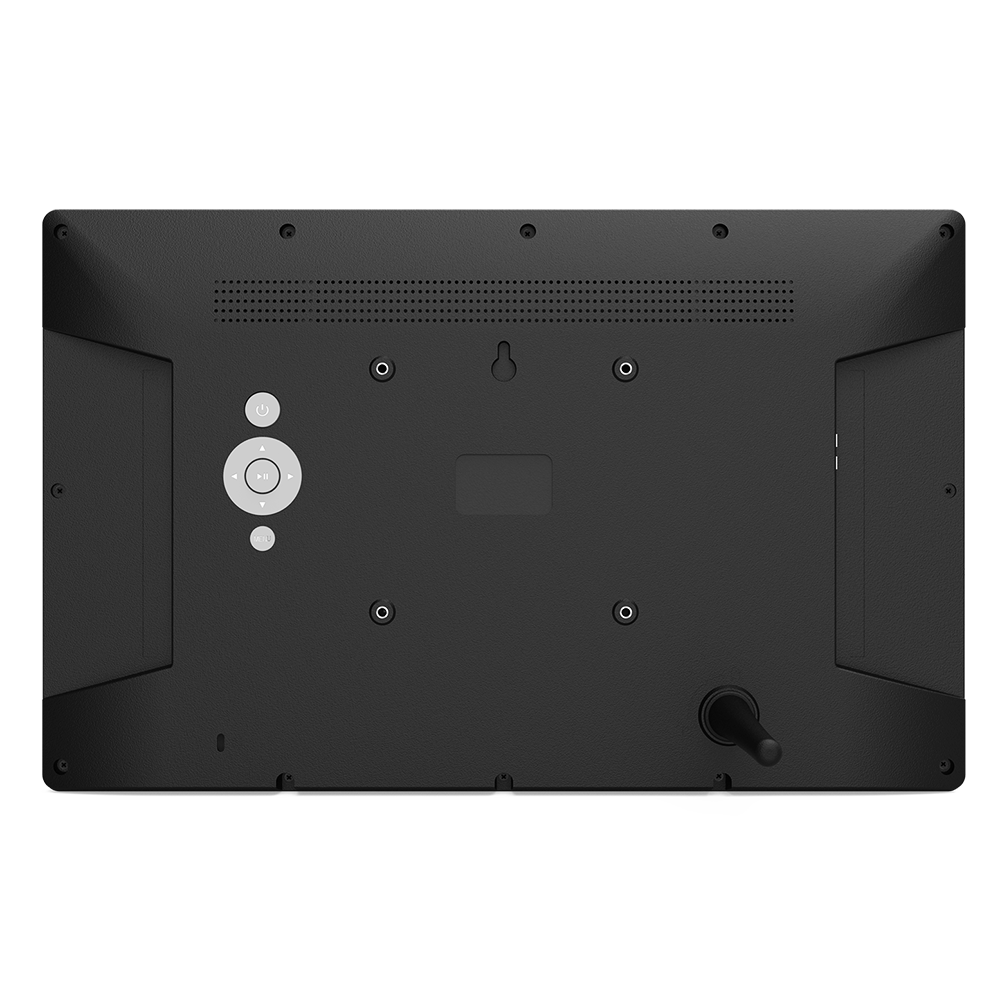

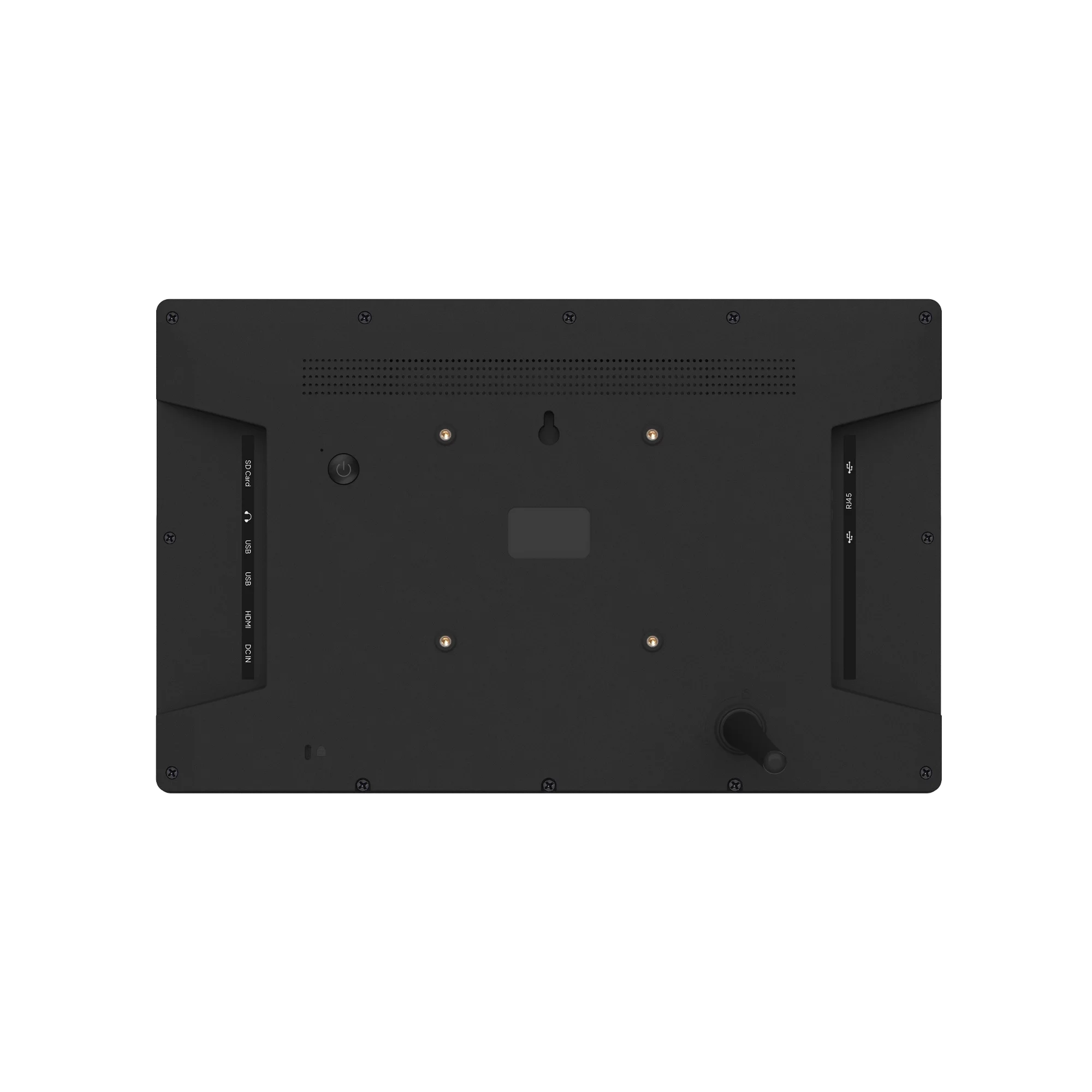

VESA 100 x 100mm
Mount Wherever Suits Your Needs.
Standard 100x100 VESA holes on the back allow you to mount the monitor to a wall bracket or arm bracket to ensure the best placement in small spaces. Elevate your productivity and embrace unrivaled convenience with this portable display.

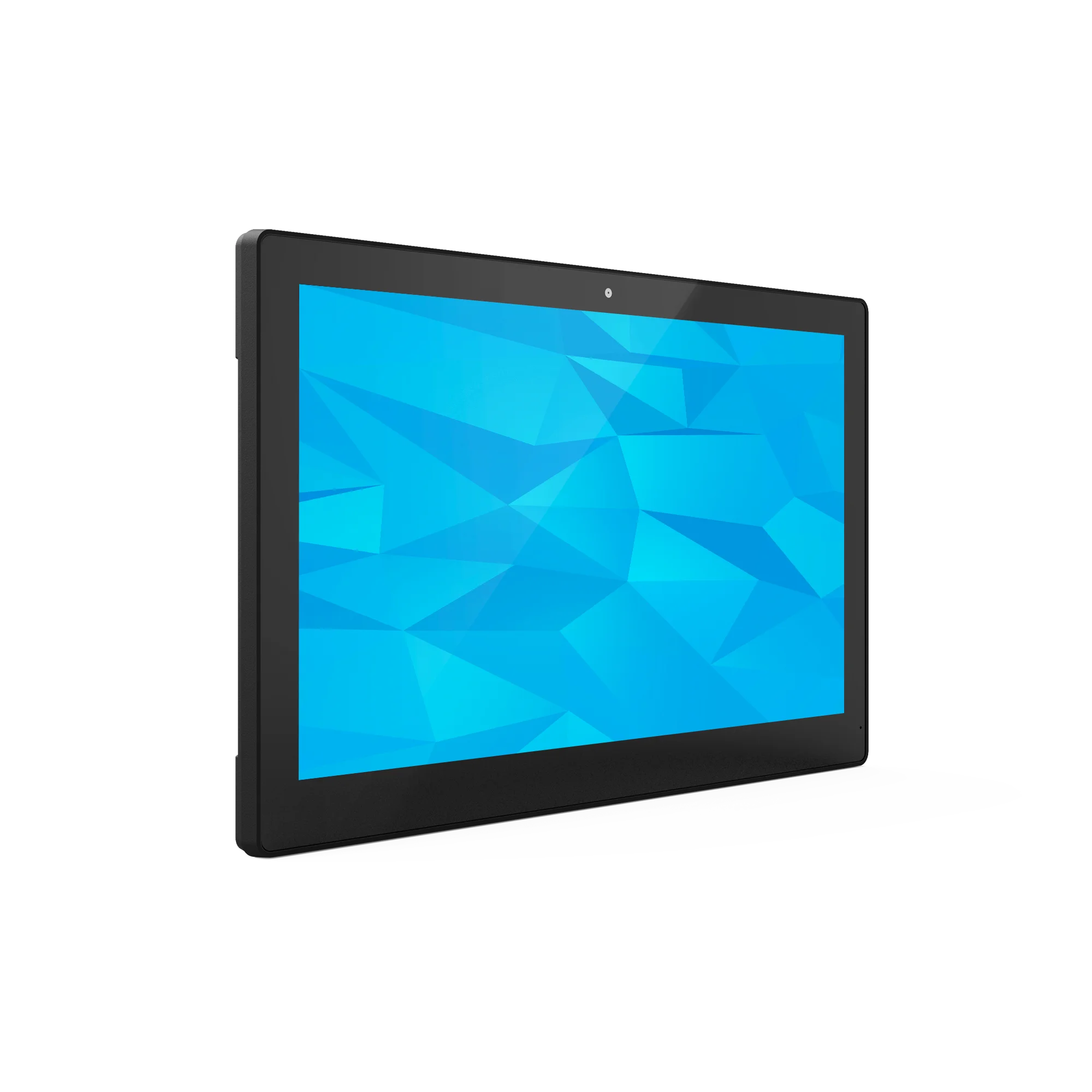

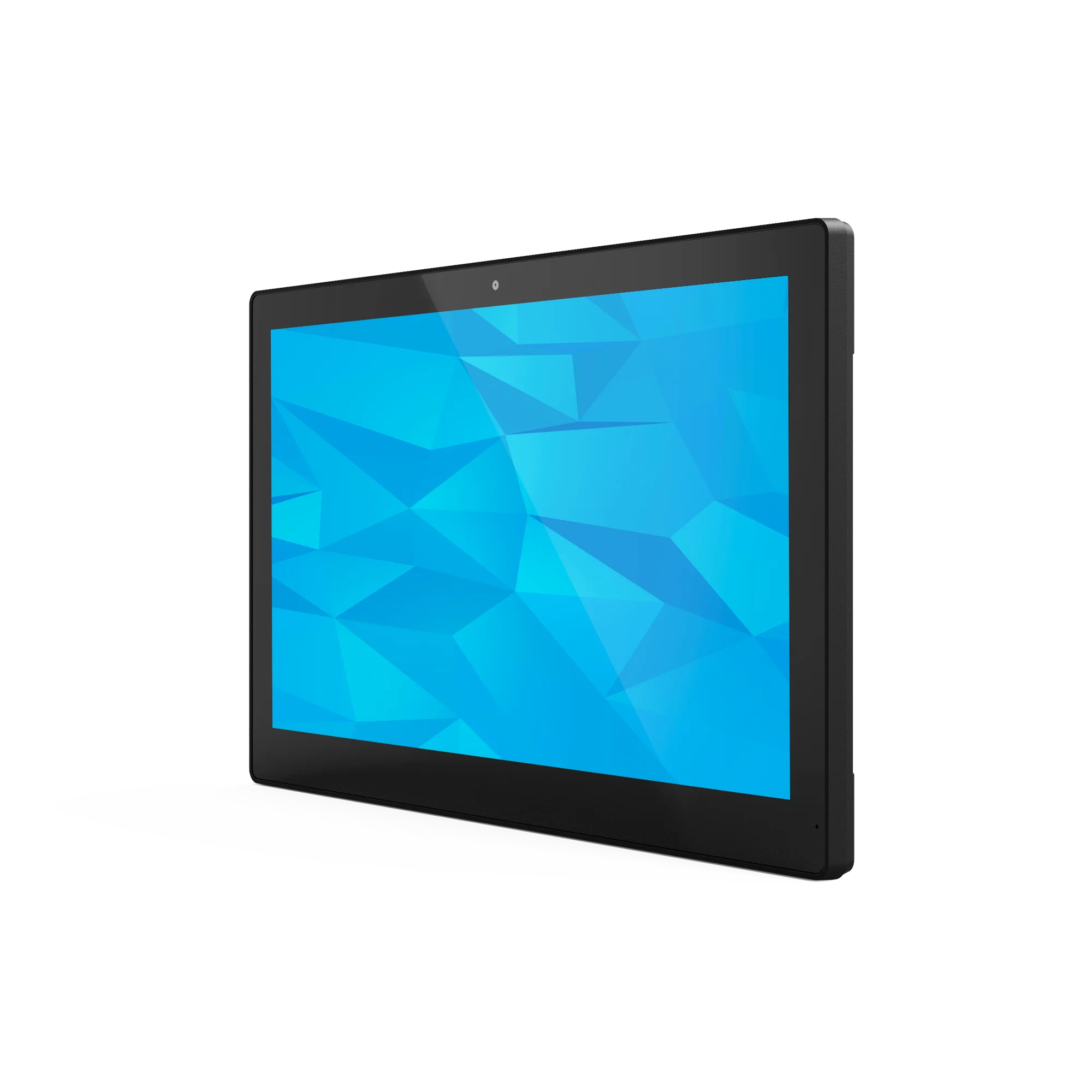

15.6" Touchscreen Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WF1562T | WF1563T | WF1566T | WF1568T
Specifications
Display
15.6-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WF1562T: RK3288 Quad-core cortex A17
- WF1563T: RK3399 Dual-core A72+Quad-core A53
- WF1566T: RK3566 Quad-core cortex A55
- WF1568T: RK3568 Quad-core cortex A55
- WF1562T: 2GB
- WF1563T: 2GB (Optional 4GB)
- WF1566T: 2GB (Optional 4GB)
- WF1568T: 2GB (Optional 4GB)
- WF1562T: 16GB
- WF1563T: 16GB (Optional 32GB/64G)
- WF1566T: 16GB (Optional 32GB/64G)
- WF1568T: 16GB (Optional 32GB/64G)
- WF1562T: Android 5.1/6.0/8.1/10.0
- WF1563T: Android 7.1/10.0
- WF1566T: Android 11
- WF1568T: Android 11
Size and Weight
388 x 245 x 27 mm (L × W × D)
Wireless
- WF1562T: 802.11b/g/n
- WF1563T: 802.11a/b/g/n/ac
- WF1566T: 802.11b/g/n
- WF1568T: 802.11b/g/n
Bluetooth 4.2
I/O Ports
- WF1562T: USB 2.0 Host*3
- WF1563T: USB 2.0 Host*2
- WF1566T: USB 2.0 Host*2
- WF1568T: USB 2.0 Host*2
- WF1563T: USB 3.0 Host
- WF1566T: USB 3.0 Host
- WF1568T: USB 3.0 Host
Mini USB OTG
HDMI output
DC power input
Media Format
- WF1562T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WF1563T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1566T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1568T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC etc.
- WF1562T: JPEG
- WF1563T: JPEG
- WF1566T: JPEG
- WF1568T: JPEG/PNG
Others
Black
100mm × 100mm
2W*2
Single Microphone
- WF1562T: General angle 2.0MP
- WF1563T: Routine angle 2.0MP
- WF1566T: Routine angle5.0MP
- WF1568T: Routine angle5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
- WF1562T: 12V/2A
- WF1563T: 12V/2A
- WF1566T: 12V/3A
- WF1568T: 12V/3A
×1
×1
